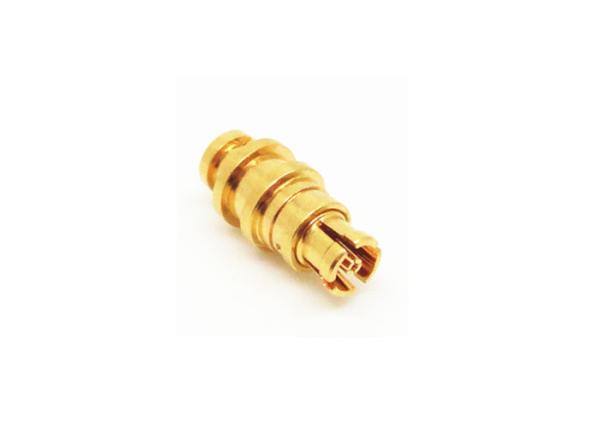

Female Straight SMPM Board to Board Connector Mini SMP RF Coaxial Connector

Name: Female Straight SMPM Board to Board Connector Mini SMP RF Coaxial Connector
Brand: ELT (Elite)
Price: 1 USD

Wholesale Female Straight SMPM Board to Board Connector Mini SMP RF Coaxial Connector from china suppliers

Brand Name : ELT (Elite)

Model Number : SSMP

Certification : CE ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 1,000,000pcs per month

Delivery Time : Within 3 weeks

Packaging Details : Standard Export Carton

Product name : SSMP Connector

Gender : Female

Impedance : 50Ω

Plating : Gold Plated

Material : Brass

Frequency Range : DC~50GHz

Rated Voltage : 170VRMS*

Model : SSMP-KB1-1

Contact Now

Female Straight Board to Board SMPM RF Connector Mini SMP RF Coaxial Connector

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.

Specification

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~50GHz
Rated Voltage	170VRMS*
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥2000MΩ
Center Resistance	Outer conductor		Normal≤3.5mΩ, Sealing≤5mΩ
	Center conductor		Normal≤8mΩ, Sealing≤30mΩ
	DC~18GHz	18~26.5GHz		26.5~40GHz	40~50GHz
VSWR	≤1.25	≤1.3		≤1.4	≤1.5
Material & Mechanical Characteristics
Center Conductor	Male		Sn-P Bronze/Kovar, Gold plated
	Female		Beryllium bronze, Gold plated
Elastic Contact	Beryllium bronze Gold plated
Shell and other Metal Parts	Brass/Kovar Gold plated Stainless steel Passivation
Insulators	Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate	≤1.01325×10-3Pa·cm3/s

Features

•35% smaller size than the SMP connectors

•Allows for axial and radial misalignment (blind mate applications)

•Performance up to 65 GHz

•Excellent shock & vibration ability

Detailed Drawing

Female Straight SMPM Board to Board Connector Mini SMP RF Coaxial Connector

Application:

* Network

* Satcom

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Telecommunications

* Mobile communication

* Computer/LANs

* Base Station

* Outdoor facilities

* Instrumentation

* Radio, TV aerial system

Product Cataloge:

RF Adapter

Waveguide to Coaxial Adapter

Glass-to-metal Hermetic Seals

J30J Series Connector

Microwave Rotary Joints

RF Cable Assemblies

SMA/SSMA RF Connector

SMP/SSMP RF Connector

MCX/MMCX RF Connector

TNC RF Connector

N Type RF Connector

BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:
* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
