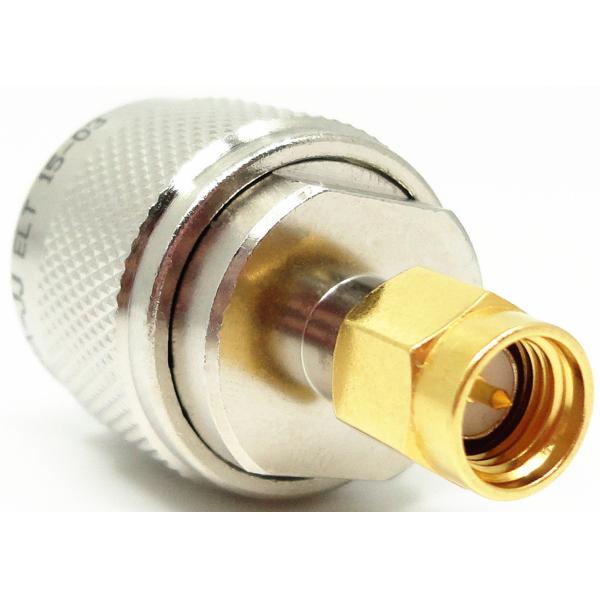

High Reliable 50Ohm N Male to SMA Male RF Adapter
N-type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.
RF SMA is a kind of coaxial connector that is widely applied, with small sized thread coupling. Characteristic impedance is 50Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Specifiacation:
| Interface according to | IEC60169-15 |
| Impedance | 50Ω |
| Freqency Range | DC to 11GHz |
| Insertion Loss | ≤0.30dB |
| VSWR | ≤1.2(DC-6GHz) |
| Insulation Resistance | ≥5000MΩ |
| Center Contact Resistance | ≤3mΩ |
| Outer Contact Resistance | ≤2mΩ |
| Mating Cycles | ≥500 |
| Temperature Range | -65-+165℃ |
| Dielectric | PTFE |
Detailed Drawing(mm)
We also can provide below N/SMA adaptors:
| Part Number | |
| N/SMA-KJ | N female to SMA male Adapter |
| N/SMA-KK | N female to SMA female Adapter |
| N/SMA-KFK | N female to SMA fmale 4 Holes Flange Mount Adapter |
| N/SMA-JJ | N male to SMA male Adapter |
| N/SMA-JK | N male to SMA female Adapter |
