SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

  • 1
  • 2

Brand Name : ELT(Elite)

Model Number : SMP-JWFD11

Certification : ROHS ISO-9001-2015

Place of Origin : China

MOQ : 50 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Credit Card

Supply Ability : 300,000,000 pcs per year

Delivery Time : Within 3 Weeks

Packaging Details : Standard Export Carton

Body material : Brass

Impedance : 50 Ohm

Color : Gold Plated

Body Style : Straight

Type : SMP Male RF Adapter

Mount Method : Blind Mate Floating Mount

Rated withstand voltage : 170VRMS*

Medium pressure : 500VRMS*

Contact Now

SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

SMP connectors, or sub-miniature push-on connectors, are typically used in high-density, blind-mate systems operating up to 40 GHz from DC.
Xi'an Elite Electronic currently offers a range of SMP cabled jack connectors, with cable crimp and soldered options. Our SMP connectors can also be used as PCB board-to-board interconnects with jack-to-jack adapters.

General Specification for SMP Connector Adapter
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS(at sea level)
Dielectrics Voltage-resistance
500VRMS(at sea leavel)
Insulation Resistance
≥5000MΩ
Contact Resistance
Outer conductor
normal≤2.5mΩ, hermetically sealed ≤4mΩ
Center conductor
normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range DC~18GHz 18~26.5GHz 26.5~40GHz
VSWR for straight connector
≤1.25
 ≤1.3 ≤1.5
VSWR for right angel connector ≤1.3
VSWR for adapter ≤1.2 ≤1.3 ≤1.5
Other ≤1.3
Center Conductor Male
Sn-P bronze
 gold plated
Female
beryllium bronze
 gold plated
Elastic Contact
beryllium bronze
 gold plated
Shell and other Metal Parts
gold plated brass, passivated stainless steel
Insulators
glass sintering/PTFE/PEI
Leakage Rate for
hermetically sealed connector
1.01325×10-3 Pa·cm3 /s

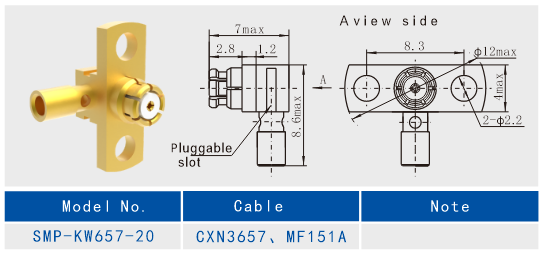

Outline Drawing of SMP Male 2-hole Flange Micro-strip Right Angle RF Connector
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector


Related SMP Female Connector
1.
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector
2.
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

3.
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector


4.
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

Mounting method:

SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

SMP Male 2-hole Flange Micro-strip Right Angle RF Connector

NOTE:
There are over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.

Product Category:
1. RF Connectors, Adapters (DC to 110GHz)
2. RF & Wave-guide Cable Assemblies
3. Wave-guide to Coax Adapters
4. Integrated(RF&DC) Connectors
5. Micro Rectangular Connector(J30J,Micro D-sub)
6. Glass-to-metal Hermetic Seals, Headers,Feedtru(RF & DC)
7. Microwave Rotary Joints
8. ODM Products
SMP Male 2-hole Flange Micro-strip Right Angle RF Connector
