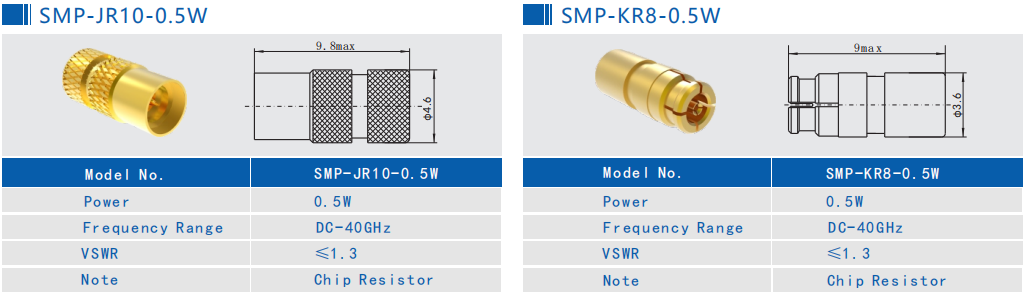

0.5 Watt RF Matched Load Termination with SMP Male Connector DC - 40GHz with Chip Resistor
Xi'an Elite Electronc ‘s SMP Male RF Load – Termination is a Push On designed that offers 50Ohm impedance and is rated for a maximum frequency of 40GHz.
The low-power matched RF load designed and produced by Xi'an Elite Electronics has an impedance of 50Ω, including SMA, SSMA, SMP, SSMP, CSMP, N, TNC, K2.92mm and other male and female interfaces, which can meet different needs of users.
| Electrical data | Requirments | | Frequency range | DC-40GHz | | Characteristic impedance | 50Ω | | VSWR | ≤1.3 | | Power | 0.5W | | | | | | Mechanical data | Requirments | | Durability (matings) | ≥500 | | | | | | Environmental data | Requirments | | Temperature range | -55℃ to 125℃ | | | | | | Material data | Requirments | | Connector parts | Material | Plating | | Body | Brass | Gold | | Coupling nut | Brass | Gold | | Pin contacts | Beryllium copper | Gold | | Insulators | PTFE | |
Details of 0.5 Watt RF Matched Load Termination with SMP Male Connector DC - 40GHz with Chip Resistor
Advantage :
* High Reliable
* Reliable Mechanical Performance
* Wide Frequency Range from DC to 40GHz
Applications :
* Broadband
* Instrumentation
* Routers
* Telecommunications
* High-Speed Applications (10 to 40Gbits)
* Cable Assembly
* PCB
* Surface Mount Connections
* Features and Benefits
Features & Benefits:
* Blindmate/push on design
* RF performance DC to 40GHz
* Designed to accommodate both radial and axial misalignment
* Push-on and snap-on mating styles for quick installation
* Next generation phase arrays
* High speed semiconductor test
* Customer specific development
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
Related RF Loads:
Shipping Service:
The shipment will be delivered via major global expresses, such as DHL, UPS, FedEx etc. Currently, it will be sent out from Xi'an, China.
